Gate valve series

The gate valve adopts a top-mounted structure, which reduces the connecting bolts of the valve body itself under the conditions of high pressure and large diameter, enhances the reliability of the valve and can overcome the influence of the self-weight of the system on the normal operation of the valve.

product series

Gate valve series

The gate valve adopts a top-mounted structure, which reduces the connecting bolts of the valve body itself under the conditions of high pressure and large diameter, enhances the reliability of the valve and can overcome the influence of the self-weight of the system on the normal operation of the valve.

LOADING IMAGES
SY-1006   Gate valve series

Nominal pressure: 1.6MPa
Working medium: water,gas,oil
Working temperature: -20℃≤t≤120℃
Thread conform: (G,Rc,RP)BSP,BSPT,NPT,NPS,UN

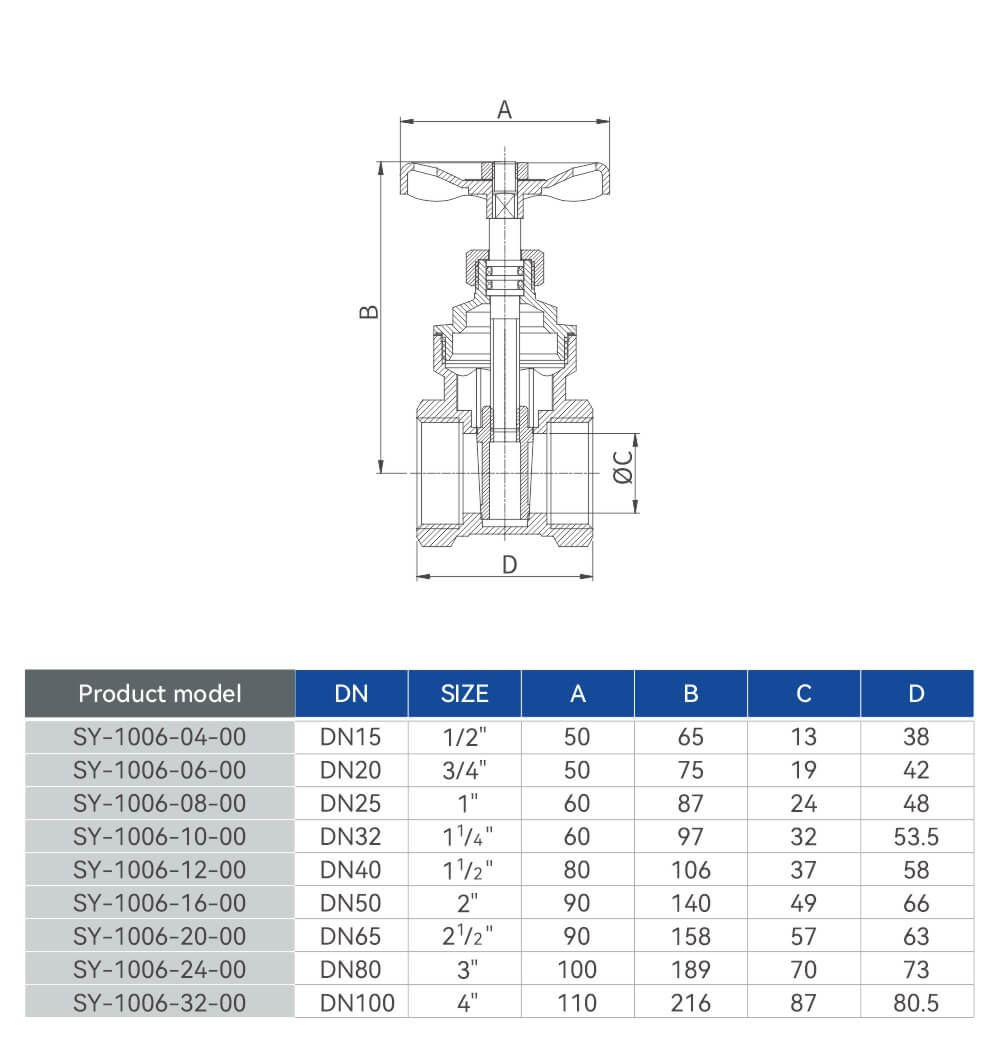

Model and size
